FANUC Six-axis robot

FANUC Six-axis robot

Six-axis industrial robot of international famous brand adopts high rigid arm and the most advanced servo technology to improve the acceleration and deceleration performance. The cable of robot wrist is built in.

Robot parameters

一、Degrees of freedom:6

二、Scope of the arm：

1.J1 shaft rotary：340°（230°/s）

2.J2 shaft rotary：250°（225°/s）

3.J3 shaft rotary：445°（230°/s）

4.J4 axis wrist rotation：380°（430°/s）

5.J5 axis wrist swing：380°（430°/s）

6.J6 axis wrist rotation：720°（630°/s）

三、Repeat positioning accuracy (mm)：≤±0.08mm

四、Maximum load capacity：≥12kg

五、Arm span：≥1420mm

六、Weight：About 130 kg

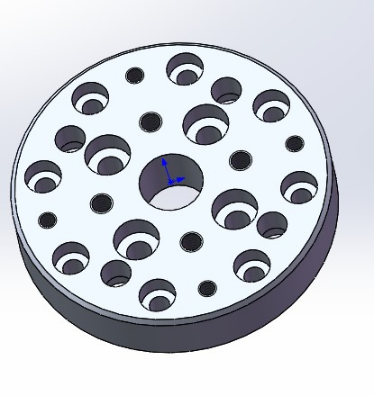

Flange adapter

(Picture is for reference only)

Flange adapter is used to connect the robot end flange and fixture parts

Basic parameters：

Outer diameter：70mm

Thickness：14mm

Weight：0.1kg
